Precision stainless steel round pipes in a wide range of outer diameters and wall thicknesses.
9.52 mm – 76.2 mm OD
GANESHKRUPA
STEEL PVT. LTD
MFG. All Type of SS Steel Pipe. Precision stainless steel pipes for furniture, railing, hardware, and industrial fabrication.
Products
Stainless steel pipe, made to measure
Round, oval, square, and rectangle SS pipes — click any chart to view the full size chart.

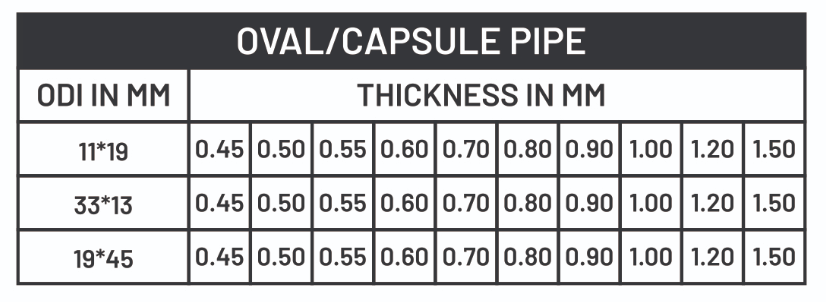

Capsule-profile pipes for furniture, railing, and architectural detailing.
11×19 · 33×13 · 19×45 mm

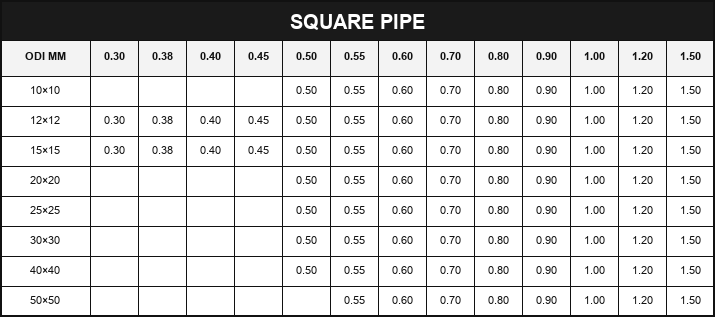

Square hollow sections with a polished finish for structural and decorative use.
10×10 – 50×50 mm

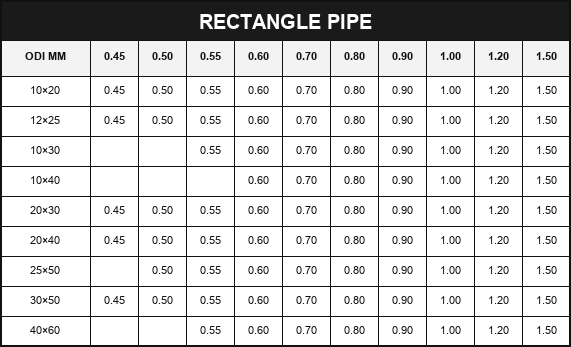

Rectangular sections sized for frames, furniture, and industrial fabrication.
10×20 – 40×60 mm
Curtain Pipe·Railing Pipe·Hardware Pipe·Furniture Pipe·

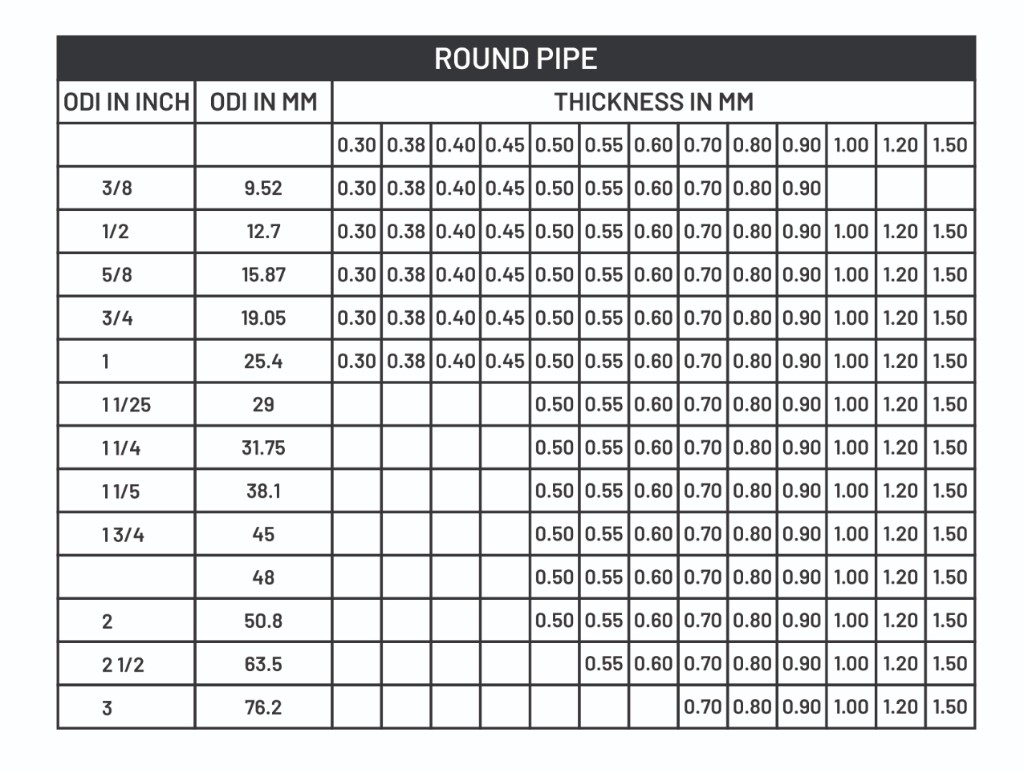

Specifications
Sizes & thickness from the brochure
Wall thickness from 0.30 mm to 1.50 mm, matched to each outer dimension.
| OD (inch) | OD (mm) | Thickness (mm) |
|---|---|---|
| 3/8 | 9.52 | 0.30 – 0.90 |
| 1/2 | 12.7 | 0.30 – 1.00 |
| 5/8 | 15.87 | 0.30 – 1.20 |
| 3/4 | 19.05 | 0.30 – 1.50 |
| 1 | 25.4 | 0.40 – 1.50 |
| 1 1/8" | 28.57 | 0.45 – 1.50 |
| 1 1/4 | 31.75 | 0.45 – 1.50 |
| 1 1/2 | 38.1 | 0.50 – 1.50 |
| 1 3/4 | 44.45 | 0.55 – 1.50 |
| 2 | 50.8 | 0.60 – 1.50 |
| 2 1/2 | 63.5 | 0.70 – 1.50 |
| 3 | 76.2 | 0.70 – 1.50 |
Finishes
Mirror or matt — built for the look you need
01
Mirror Finish
High-reflectivity polish for premium architectural and furniture work.
02
Matt Finish
Soft, non-reflective surface for refined industrial and interior applications.
Contact
Talk to Ganeshkrupa Steel
Reach us for sizes, finishes, and bulk supply from our Gondal facility.
Address
Plot No. 35, NH-27, Jamwadi GIDC, N/R Mirar Cement Pipe, Gondal — 360311 (Guj.)
Phone / WhatsApp
+91 88498 91439Website
www.ganeshkrupasteel.com
